Prefabricated Steel Warehouse with Large Span Design, Corrosion Resistant Coating, and Rapid Installation for Industrial Use

Brand Name : KXD

Model Number : KXD-EQUIPMENT

Certification : CE, ISO 9001, ISO140001, ISO45001

Place of Origin : Qingdao

MOQ : 500 square meters

Price : 20-80 USD per sqm

Payment Terms : T/T,L/C

Supply Ability : 5000 Sets/Month

Delivery Time : 15-35days

Packaging Details : Steel Pallet Or In Bulk

Carbon Structural Steel : Q235b Q355B

Structure : Steel Frame

Third Party Test : SGS, BV, ITS

Design Style : Modern

Frame : Steel Structure

Foundationtype : Concrete foundation

Tie Beam : Round Pipe Or Square Tube

Package : Packages Suitable For Transportation

Drawing : CAD, TEKLA, 3D Model, PKPM, BIM

Door : Sliding Door or Rolling Door

Accessory : flashing, skylight, fans, gutter

Processing Service : Bending, Welding, Decoiling, Cutting

Feature : Anti Corrosion

Frametype : Steel frame

Roof Type : Flat

Hight : 3m to 20m

Main Steel Frame : H section steel, Q345 steel 8mm/10mm

Height Range : 3m to 20m

Roof Purlin : C160*60*2.5, Steel Q235, galvanized and painted

Wall Purlin : C160*60*2.5, Steel Q235, painted

Surface Processing : Alkyd paint or galvanized

Intensive Bolt : Grade 10.9

Contact Now

Prefabricated Warehouse Steel Structure Building | H Beam Metal Frame Industrial Steel House

Key Features

Rapid Installation: All components are prefabricated in the factory and connected via bolts on-site, reducing construction time by over 50% compared to traditional buildings.
High Strength & Durability: Featuring H-beam main frames, the structure offers superior stability with excellent earthquake and wind resistance, ensuring a lifespan of over 50 years.
Cost-Effectiveness: Lightweight design lowers foundation costs, while recyclable steel materials and minimal maintenance requirements ensure long-term savings.
Large Span Space: H-beams allow for large-span designs with no internal columns, maximizing usable space and facilitating the operation of heavy machinery.
Versatile Applications: Ideal for logistics warehouses and workshops, as well as large garages, hangars, distribution centers, and temporary exhibition halls.

Material Specifications

Main Steel Frame

Component	Specification	Material/Process
H Section Steel	8mm/10mm	Q345 Steel
Welding	Automatic submerged arc welding
Rust Removal	Sand blasting
Surface Processing	Alkyd paint or galvanized
Intensive Bolt	Grade 10.9

Supporting System

Component	Specification	Material/Process
Angle Brace	L50x4	Steel Q235, processed and painted
Cross Support	Φ20	Steel Q235, processed and painted
Belt Bar	Φ89*3	Steel Q235, processed and painted
Small Brace	Φ12	Steel Q235, processed and painted
Ordinary Bolt	Galvanized bolt

Roof System

Component	Specification	Material/Process
Purlin	C160602.5	Steel Q235, galvanized and painted
Outer-roof Panel	Sandwich panel or corrugated steel plate
Transparent Lighting Panel	6mm thick PVC
Accessories	Glass cement, self-tapping screws, etc.
Edge Cover	Made from 0.5mm thick, colored sheet steel
Gutter	Made from 0.8mm thick sheet steel
Rainspout	Φ110PVC

Wall System

Component	Specification	Material/Process
Purlin	C160602.5	Steel Q235, painted
Wall	Sandwich panel or corrugated steel plate
Accessories	Glass cement, self-tapping screws, etc.
Edge Cover	Made from 0.5mm thick, colored sheet steel
Axial Fan	Axial fan
Doors & Windows	Rolling door/sliding door PVC/Alu/steel window

Light Steel Structure Workshop Specifications

Parameter	Specification
Material	ASTM A283, Q235, Q345 etc.
Size	Any sizes as client's request
Surface	Paint or hot dipped galvanized
MOQ	20 square meters

Product Gallery

Prefabricated Steel Warehouse with Large Span Design, Corrosion Resistant Coating, and Rapid Installation for Industrial Use

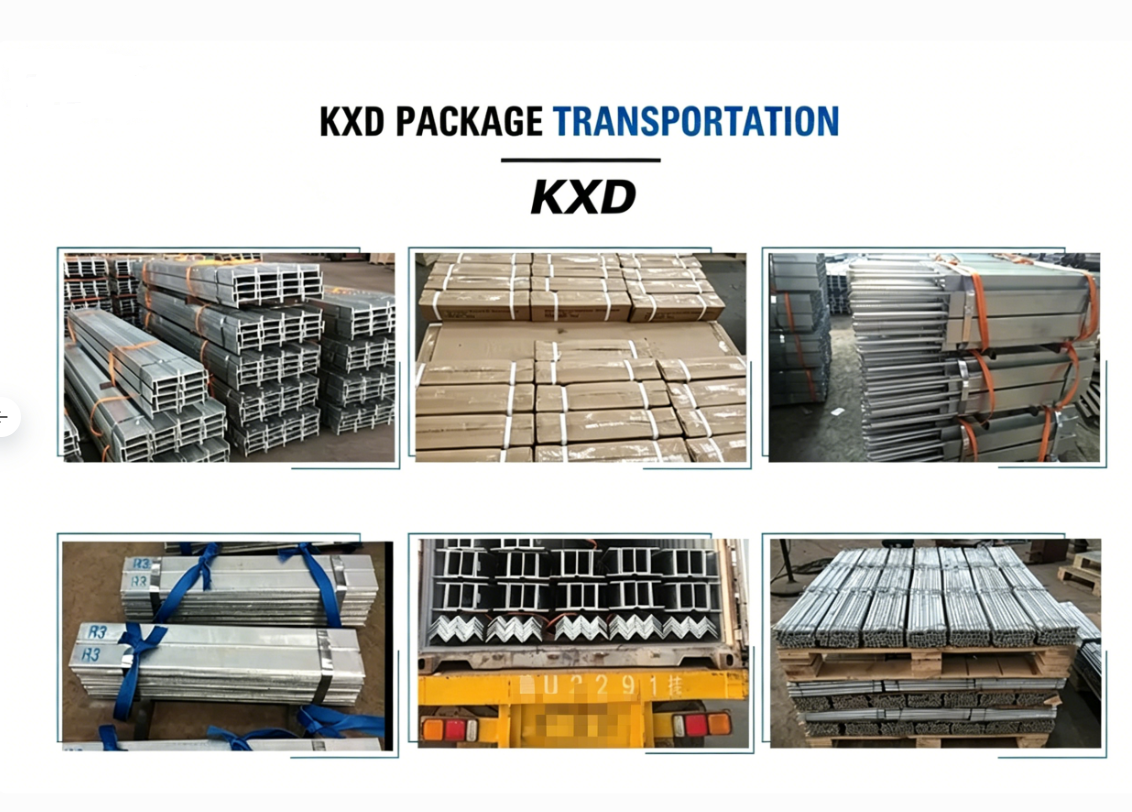

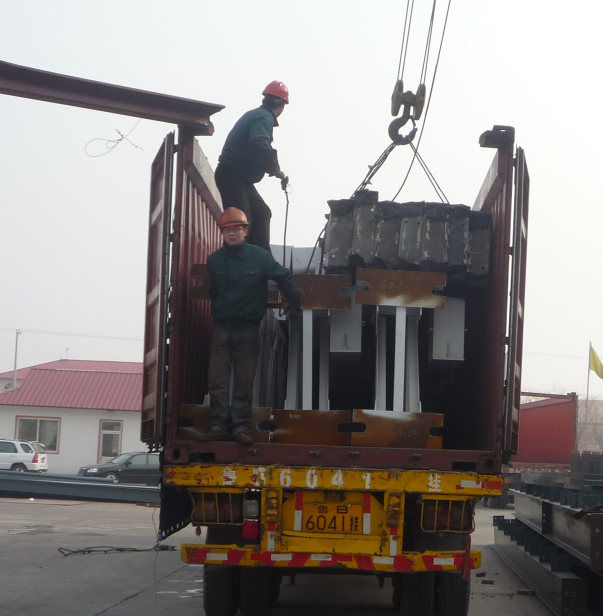

Loading & Transportation

Site Visits & Projects
